HPE FlexFabric 5700 Switch Series

The HPE Flex Fabric 5700 Switch Series is a family of high-performance, high-density, ultra-low-latency, top-of-rack (ToR)
switches that is part of the Hewlett Packard Enterprise (HPE) FlexNetwork architecture’s HPE FlexFabric solution.
Ideally suited for deployment at the server access layer of large enterprise data centers, the HPE 5700 Switch Series is positioned
to provide a cost-effective solution that is still powerful enough to handle the increase in virtualized applications and server-toserver traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity,
convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-low-latency all in a single
device.

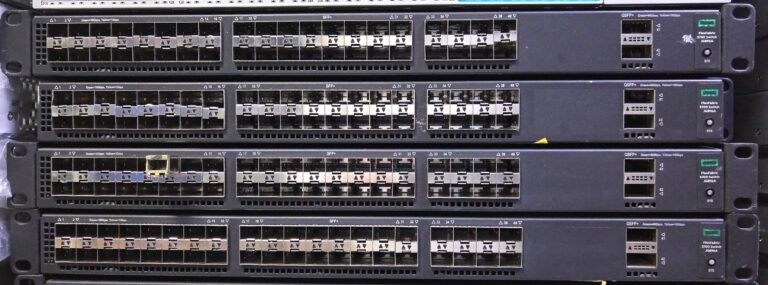

HPE FlexFabric 5700 40XG 2QSFP+ Switch (JG896A)
I/O ports and slots 40 fixed 1000/10000 SFP+ ports
2 QSFP+
Additional ports and
slots
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan tray 2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch. This system requires
two same-direction airflow fan trays to function properly.
The system should not be operated with only one fan tray for more than 24 hours. The system should
not be operated without a fan tray for more than two minutes.
The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C).
Failure to comply with these operating requirements may void the product warranty.
Physical characteristics Dimensions 17.32(w) x 18.11(d) x 1.72(h) in (43.99 x 46 x 4.37 cm) (1U height)
Weight 22.05 lb (10 kg) shipping weight
Memory and processor 512 MB flash; Packet buffer size: 9 MB, 2 GB SDRAM
Performance 10 Gbps Latency < 1.5 µs (64-byte packets)
Throughput up to 714.2 Mpps
Routing/Switching capacity 960 Gbps
Routing table size 128 entries (IPv4), 128 entries (IPv6))
MAC address table size 64000 entries
Environment Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
Acoustic Low-speed fan: 65.7 dB, High-speed fan: 70.6 dB
Electrical
characteristics
Frequency 50/60 Hz
Voltage 100 – 240 VAC, rated
-48 to -60 VDC, rated
(depending on power supply chosen)
Maximum power rating 162 W
Idle power 90 W
Notes Idle power is the actual power consumption of the device with no ports
connected.
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
