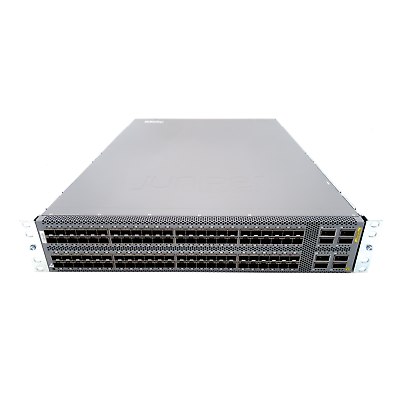

The highly efficient QFX5100-96S offers 96 ports of native 10GbE for server connectivity and eight 40GbE ports for uplink connectivity, providing very low oversubscription of 3:1 from access to aggregation.
| Main Specifications | |
| Dimensions & Weight / Depth | 57 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 14.74 kg |
| Dimensions & Weight / Width | 44.09 cm |
| Header / Brand | Juniper Networks |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 96 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| System Requirements / OS Required | JUNOS |
| Dimensions & Weight | |
| Depth | 57 cm |
| Height | 8.8 cm |
| Weight | 14.74 kg |
| Width | 44.09 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Humidity Range Storage | 0 – 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | · 96 x SFP+
· 8 x QSFP+ (breakout compatible) · 1 x console management · 1 x USB management · 1 x RJ-45 management · 1 x SFP management |
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Built-in Devices | 32 GB SSD |
| Capacity | · IPv4 routes (Unicast): 128000
· Virtual interfaces (VLANs): 4091 · IPv4 hosts: 208000 · IPv4 routes (Multicast): 104000 · IPv6 routes (Multicast): 52000 · IPv6 routes (Unicast): 64000 · ARP entries: 48000 · Multiple Spanning Tree Protocol instances: 64 · VLAN Spanning Tree Protocol instances: 253 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, Shaped Deficit Weighted Round-Robin (SDWRR) |
| Device Type | Switch – 96 ports – L3 – managed |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Encryption Algorithm | MD5, AES |
| Features | Flow control, VPN support, BOOTP support, RARP support, ARP support, trunking, VLAN support, IGMP snooping, DoS attack prevention, store and forward, MAC address filtering, IPv6 support, High Availability, SNTP support, Low-latency queuing (LLQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Redundant trunk group (RTG), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), IPv4 support, DHCP relay, Data Center Bridging (DCB), Management Information Base (MIB), Strict Priority Queuing (SPQ), VLAN Spanning Tree Protocol (VSTP), loop prevention, redundant hot swappable fans, FCoE forwarding, Class of Service (CoS), cut-through, 12 MB shared buffer |
| Fibre Channel | FC-BB-5, FC-BB-6 |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 288K entries |
| Performance | · Switching capacity: 2.56 Tbps
· Switching capacity: 1.44 Bpps |
| Ports | 96 x 1 Gigabit SFP/ 10 Gigabit SFP+ + 8 x 40 Gigabit QSFP+ (breakout compatible) |
| Processor | 1 x Intel: 1.5 GHz |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH, CLI |
| Routing Protocol | OSPF, RIP, RIP-2, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, MSDP, ECMP, Bidirectional Forwarding Detection (BFD), CIDR |
| Subtype | 10 Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, EN55022 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, BSMI CNS 13438, REACH, EN 60825-1, GR-1089-CORE, VCCI Class A, GR-63-CORE, NCC, China RoHS, AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1 |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply – hot-plug |
| Power Provided | 850 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
