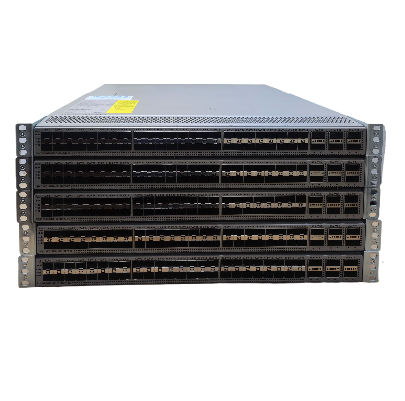

N9K-C93180YC-FX – Cisco Nexus 9000 Series

Name: N9K-C93180YC-FX - Cisco Nexus 9000 Series - efurbuy
Price: 4750.00 AED
Availability: InStock

Model: N9K-C93180YC-FX

In Stock

~~5.700,00 د.إ~~ 4.750,00 د.إ

Other people want this. 7 people have this in their carts right now.

Categories: Managed Switch, Networking

The Cisco Nexus 93180YC-FX Switch is a 1RU switch with latency of less than 1 microsecond that supports 3.6 Tbps of bandwidth and 1.2 bpps. The 48 downlink ports on the 93180YC-FX are capable of supporting 1-, 10-, or 25-Gbps Ethernet or as 16-, 32-Gbps Fibre Channel ports.

Description
Specification

Description

Brand Name: Cisco

Product Series: Nexus 9000 Series

Product Model: N9K-C93180YC-FX

Product Type: Switch

N9K-C93180YC-FX Specification
Hardware performance and scalability
Ports	48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds	1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel
CPU	6 cores
System memory	Up to 32 GB
SSD drive	128 GB
System buffer	40 MB
Management ports	1 RJ-45 port L1 and L2 ports are unused
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	500W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC)	260W
Maximum power (AC/DC)*	425W
Input voltage (AC)	100 to 240V
Input voltage (High-Voltage AC [HVAC])	200 to 277V
Input voltage (DC)	–48 to –60V
Input voltage (High-Voltage DC [HVDC])	–240 to –380V
Frequency (AC)	50 to 60 Hz
Fans	4
Airflow	Port-side intake and exhaust
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Acoustics	57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed
RoHS compliance	Yes
MTBF	238,470 hours
Environmental properties
Operating temperature	32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature	–40 to 158°F (–40 to 70°C)
Humidity	5 to 95% (noncondensing)
Altitude	0 to 13,123 ft (0 to 4000m)
